Ruggedized computer monitors MCS24
Ruggedized computer monitor
MRC24 Ruggedized Computer Monitor

MRC24 Ruggedized Computer Monitor

The MRC24 Ruggedized Computer monitor is a military grade 1U rackmount display that was designed ground up to meet military standards such as MIL-S-901D and MIL-STD-810G.  Perfect for mounting in 19″ 4-Post equipment racks as well as transit case configurations.  Utilizing a light weight frame constructed of 5052H32 aluminum and integrated locking stainless steel hardware make the display extremely rugged and reliable. The MRC24 offers three LCD screen options as well as several LCD screen enhancement options. The unit offers three keyboard options, multiple KVM options and power supply options ranging from AC, 12VDC and 28VDC.



SKU: 90000318-1-1 Categories: ,

Product description

Features of the MRC24 Ruggedized Computer Monitor:

FRAME & ENCLOSURE:

  • 1U (1.71″) x 24.4″ deep
  • Laser Cut and Milled 5052H32 and 6061T6 Aluminum Construction
  • General Device MIL Spec Friction Slide Bearing System
  • Locking Hardware
  • Integrated Cable Management System
  • Milled front panel, with fold-in handle and captive retention hardware
  • Designed for 19″ Rackmount and transit case installations

LCD DISPLAY SIZE OPTIONS:

  • Industrial Grade LCD Panels Options
    • STANDARD: 17.3″ screen size – 1900 x 1200 Resolution – 300NITS brightness
    • OPTIONAL: 17.3″ screen size – 1900 x 1200 Resolution – up to 1000NITS brightness
    • OPTIONAL: 19″ screen size – 1280 x 1024 Resolution – 450 NITS brightness
  • Optically Bonded 3mm Cover Glass
  • Optically Bonded EMI Shield Option
  • Touch Screen Options
  • High Bright Options
  • NVIS Backlight Options

KEYBOARD OPTIONS:

OPTION: IK1

The first keyboard option for the MRC24 Ruggedized Computer Monitor provides for full military specifications into an extremely thin, 0.41″ depth, making it ideal for rugged applications. Designed to meet MIL-461G standards, this rugged keyboard has excellent performance for conducted and radiated emissions, including 50 volts/meter. It also is designed to meet MIL-STD-810F, and is resistant to sand, debris and liquids.  The keyboard features dual pointing devices – an integrated FSR pointing device and a touchpad. The keyboard also has adjustable green LED backlighting, with optional NVIS Green B.

FEATURES:

  • Designed to meet MIL-STD-461G specifications
  • Integrated FSR pointing device
  • Integrated Touchpad
  • Optional NVIS Compliant – Green B backlighting
  • Certifications: NEMA 4X UL60950, FCC Part 15 Class B
  • KEY SWITCH: MATERIAL: Industrial silicone rubber LIFE: Greater than 10 million cycles TRAVEL: 0.055 ACTUATION FORCE: 180g (+/- 30g) FEEDBACK: Tactile with mechanical snap

OPTION:IK2

This keyboard packs full military specifications into an extremely thin, 0.43″ depth, making it ideal for rugged applications.  Designed to meet MIL-461G standards, this rugged keyboard has excellent performance for conducted and radiated emissions, including RS103 and 200 volts/meter.

The keyboard’s top-mounted assembly eliminates the need to dismantle laptop components to reach the keyboard. In addition, it features an integrated FSR pointing device and adjustable green LED backlighting, with optional NVIS Green B.

  • CERTIFICATIONS: NEMA 4X UL60950, FCC Part 15 Class B
  • Key Switch: MATERIAL: Industrial silicone rubber LIFE: Greater than 10 million cycles TRAVEL: 0.055 ACTUATION FORCE: 6.35 oz +/- 1.06 oz (180g +/-30g) FEEDBACK: Tactile with mechanical snap

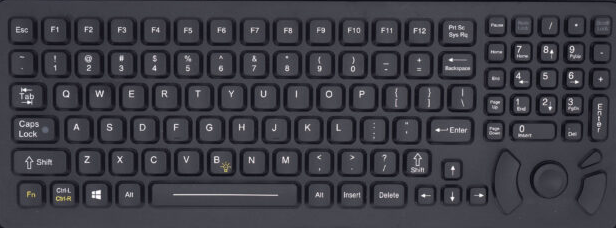

OPTION: IK3

Designed to meet military MIL-STD-461-G standards, this keyboard assembly is ideal for harsh environments where electromagnetic interference is a top concern. In addition, the keyboard provides full size versatility in a rugged, compact design, with the added convenience of an integrated force sensing resistor. It is engineered to meet NEMA 4X specifications, and is resistant to sand, debris and the elements. The large numeric pad on this model allows for easy data entry.

  • CERTIFICATIONS:  NEMA 4X UL60950, FCC Part 15 Class B
  • KEY SWITCH:  MATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05 oz +/- 1.06 oz (200g
  • +/- 30g) FEEDBACK: Tactile with mechanical snap

VIDEO CONTROLLER:

The  LCD controller for use in harsher environments supports video signals up to 4096×2160 and LCD panel resolutions up to 4096×2160 (60Hz & 120Hz using IE-2000) with 8 lane V-by-One connectivity. HDMI 2.0/1.4, DVI Dual-link and Display port 1.2 inputs with board mounted industry standard input connectors for easy enclosure design.

Inputs:

  • HDMI 1.4: 60Hz up to 1920×1200 1080p, 1080i, 720p, 576p, 480p
  • Display port: 60Hz up to 1920×1200 1080p, 1080i, 720p, 576p, 480p
  • DVI (single link) 60Hz up to 1920×1200
  • ARGB / VGA 60Hz up to 1920×1200. With auto detect of Digital Separate Sync, Sync-On-Green & composite Sync. Auto detects VGA-WUXGA.

REAR PANEL (KVM OPTIONS)

  • 8-Port DVI/HDMI Connector KVM with USB Keyboard and Mouse support

POWER SUPPLY:

  • STANDARD: AC-DC 60W External Power brick with positive retention connection
  • Universal Power Input: 90-264 VAC (120-370 VDC)
  • Cooling: Convection-cooled

Technical Specifications

Configuration Options
