External Battery Module For A11H/E11A (3kVA/ 15min up to x3)

$1,229.99

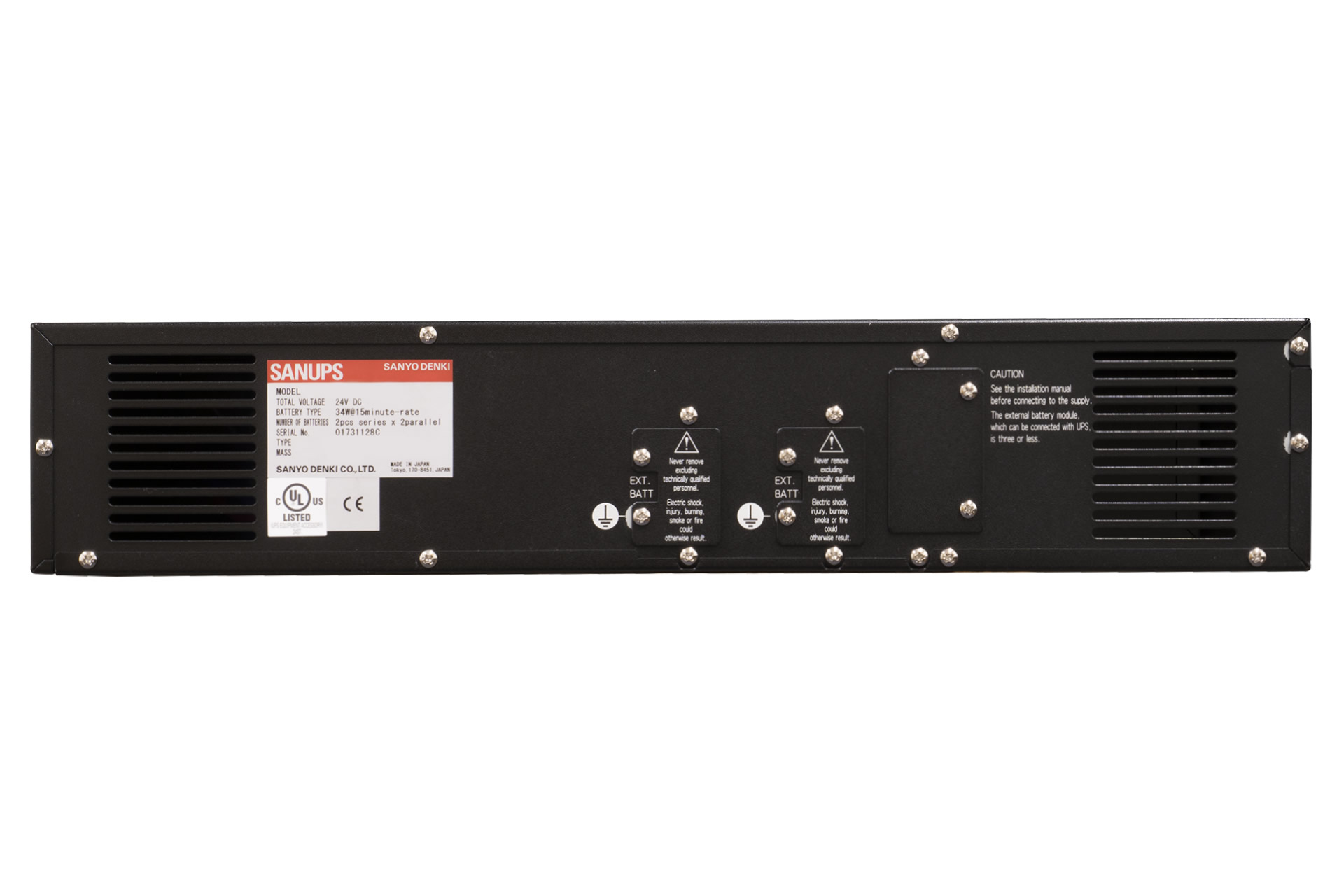

This external battery module (EBM) is designed for A11H & E11A Rack/Floor UPS.

  • Extended Run-Time is 15 min when load is 100%.
  • Add maximum up to 3 EBM units. (45min)
  • Rack support rail (RM030-US) is required to mount on a rack.
  • Compatible with 100/110/115/120V SANUPS.
SKU: BCE11A302A03US Categories: , , , Tag:

Out of stock

Product description

This external battery module (EBM) is designed for A11H & E11A Rack/Floor UPS.

  • Extended Run-Time is 15 min when load is 100%.
  • Add maximum up to 3 EBM units. (45min)
  • Rack support rail (RM030-US) is required to mount on a rack.

Technical Specifications

More
Model

BCE11A302A03US

Battery Type

Leak Proof Small-sized valve-regulated lead-acid (VRLA) battery

Included Battery Packs

2 pcs

Replacement Battery

BPE11A302A01-1

Typical Recharge Time (100%)

36 Hours

Expected Battery Life

5 years

Run Time (Load 100%)

15 min

External Battery Module Size (HxWxD)

17.32×25.98×3.39in (440x660x86mm)

External Battery Module

110.23lbs(50kg)

External Battery Module Shipping Weight

22.83×35.04×15.35in (580x890x390mm)

External Battery Module Weight

136.68lbs(62kg)

Operating Temperature

0 to 40°C

Operating Humidity

20 to 90%

Operating Elevation

3000 m max.

Documentation

Certification

UL Certification


Data Sheet


Manuals
