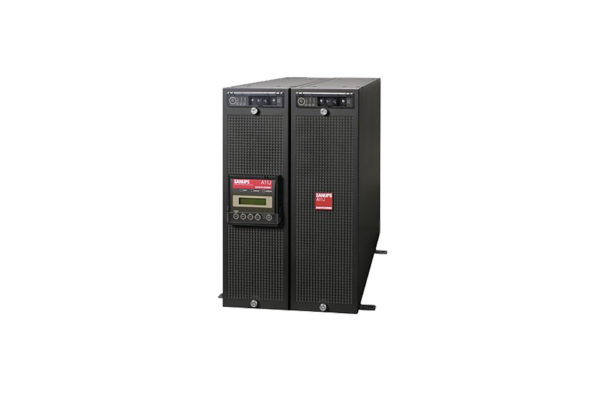

10kVA UPS | SANUPS A11J 10kVA Online UPS


  • The A11J UPS provides clean and stable electrical battery backup power to mission-critical electrical equipment during and after a power loss or disruption events.
  • Automatic Voltage Regulation (AVR) capability offers you peace of mind by protecting critical equipment from daily incoming electrical surges or sags.
  • The modular and scalable design of the A11J provides for future expansion capabilities as well as serviceability with zero downtime for connected equipment.
  • Purchase with confidence!  Sanyo Denki has manufactured power protection products for over 90 years.  This power protection expertise is the reason why the A11J is backed by an industry leading 3-year product warranty.

See more details below!

SKU: A11J103A002TU Categories: , , Tags: ,

Out of stock

Product description

Benefits & Features of the SANUPS A11J 10kVA UPS include:

  • 10kVA\ 10000VA \ 9000W
  • Backup battery runtime: 11 min @ 100%, 29 min @ 50% power draw
  • Scalable runtime: Up to 40 min @ 100% power draw
  • 10kVA Double conversion UPS topology for advanced power conditioning capabilities
  • 10kVA rack & tower configurations
  • Single Phase 208V & 240V 50/60hz input voltage
  • Wide Range AC power input capable
  • “Cold Start” capable
  • Input Power Factor Correction and pure sine wave output in both voltage and frequency
  • RS-232 port for monitoring and control. Optional software for network management and allowing systems to gracefully shutdown before the UPS battery discharges, multiple operating systems are supported
  • Automated battery management & test
  • Hot swappable battery modules for zero downtime during battery replacement
  • Long life, revision controlled Commercial Off-The-Shelf (COTS) UPS
  • Ruggedized enhancements such as protective chemical coatings, components epoxied into place, and double sealed batteries
  • Modular UPS systems for quick replacement main system components
  • Agency Approved: FCC Part 15, Subpart B, Class C: UL1778 5th edition (E226092)
  • Industry leading Three-year Warranty

Power Protection provided by the SANUPS A11J 10kVA Uninterruptible Power Supply:

  • Power problems such as electrical surges and sags
  • Total loss of electrical power or hard power “re-boots”
  • Unstable incoming power caused from outdated or faulty electrical wiring and or power distribution equipment
  • Harmonic interference from neighboring “high power draw” equipment
  • Severe weather events such as lighting storms, ice and snow storms and downed power lines
  • Unstable power generation from local utilities or on-site generation

Wide Power Input

The SANUPS A11J 10kVA UPS offers support for incoming wide utility power input. This feature protects the UPS and connected equipment and data from adverse voltage conditions. This feature stabilizes surges and sags without the need of engaging the backup batteries of the UPS during the power event. This greatly reduces stress on connected critical equipment and extends the battery life of the UPS.

Double Conversion Topology

The SANUPS A11J 10kVA UPS provides true online double conversion providing the ultimate in clean and stable electrical power.  Incoming AC power is fed to the systems rectifier converting it from AC to DC power. The converted DC power charges the battery and feeds power to the inverter for conversion back to AC power. The resulting “double converted” electrical power is pure sine waveform output providing near perfect electrical power for connected equipment.

To ensure 7/24 up time the double conversion UPS topology utilizes a maintenance bypass switch within its circuity design. If the UPS detects a system failure within the UPS, audible alarms will sound as the bypass switch is engages. This routes power around the failed UPS and ensures critical load is still supplied to critical equipment.

In the event of total power loss, the 10kVA Online UPS’ internal backup batteries will continue to supply power to  your critical equipment. There is no transfer time as the transition to battery power is instantaneous. This feature provides true uninterruptible power to mission critical equipment.

Technical Specifications



Rated Power Capacity (Apparent/Active)

10kVA / 9.0kW
N+1 5kVA / 4.5kW

Power Consumption

339 W

Expected Product Life Time

10 years


RS232C, EPO, Output Line Control Port, Remote Port

Acoustic Noise

50 dB max.

Operating Temperature

0 to 40°C

Operating Humidity

20 to 90%

Operating Elevation

3000 m max.

Unit Size (HxWxD)

7.13×28.74×5.12in x2 (435x700x130mm x2)

Unit Weight

138.1lbs x2(63kg x2)

Unit Shipping Size (HxWxD)

Contact us

Unit Shipping Weight

Contact us


EN62040-2, EN55022 ClassA
FCC Part 15 Subpart B Class A
UL1778, IEC62040-1(CE)

Rated Voltage (Input)

200/208/220/230/240 V (Default : 200 V)

Frequency Range

40 to 120 Hz

Input Connection

I/O Terminal block

Voltage Range

120 to 276 V (70% or less) 180 to 276V (More then 70%)

Input Leak Current

8 mA

Rated Voltage (Output)

200/208/220/230/240 V (Default : 200 V)

Voltage Harmonic Distortion

3% max. (Linear load)
8% max. (Non-linear load)

Rated Frequency

50/60 Hz


True online double conversion

Wave Form Type

Pure sine wave

Output Connection

Herd Wire


Built in

Number Of Phases/Wires

Three-phase 5-wire

Output Voltage Range

±2% max.

Overload Capacity

110% (1 min)
N+1 220% (1 min)

Efficiency (Maximum%)

Contact us

Battery Type

Leak Proof Small-sized valve-regulated lead-acid (VRLA) battery

Included Battery Packs

4 pcs

Replacement Battery

BPA11J005A00UA x2 (Right)
BPA11J005A00UB x2 (Left)

Typical Recharge Time (100%)

18 Hours

Expected Battery Life

5 years

Run Time (Load 100%)

5 min
N+1 10 min

External Battery Module


External Battery Module Size (HxWxD)

7.13×30.71×5.12in (UA, UB)

External Battery Module Weight

108.0lbs (UA)
185.2ibs (UB)

External Battery Module Shipping Size (HxWxD)

Contact us

External Battery Module Shipping Weight

Contact us

Whats in the box

Cable Cover For UPS x2
Communication Cable x1
Floor Mounting Bracket x4
Instruction Manual x1
LCD Panel Operating Manual x1
Power Management Software disc (Stand Alone Free Version) x1
Rack Mounting Bracket x2
Support Bracket A x8
Support Bracket B x4
UPS x2

Estimated Run-Time

Battery Run Time Graph
